JCR International, the dedicated global sales partner of Grupo Sicnova, has the mandate of selecting, assessing, appointing and supporting selected organisations around the world to provide professionals everything they need to realise the benefits of additive manufacturing.
JCR International brings together over 40 years experience in international trade including export financing, export documentation and efficient logistics by road, air and sea freight.
By working in collaboration with our partners in each territory and establishing effective communication from end user direct to the manufacturer, we facilitate an unrivaled level of user experience providing the confidence and the know how to embrace Industry 4.0.
Efficiency from the first moment. Automatically correcting errors in the file and verifying the print configuration, reducing time and production costs.

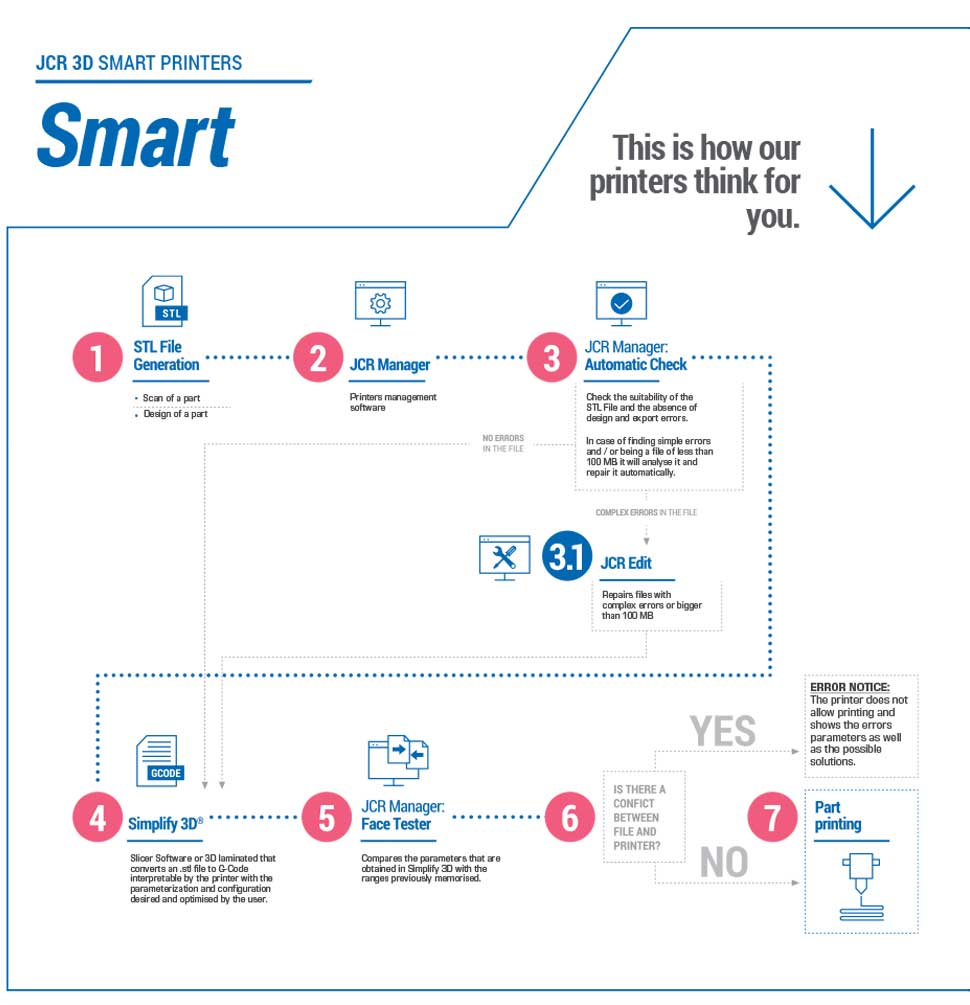

Automatic Check
Function that allows you to verify and
automatically repair the STL file prior to
printing. Provides you with a report of the
error such as holes in the design and
automatically repairs it. This software is
integrated in the printer and is valid for
files of less than 100MB. A function is
available in the JCR Edit Software for
larger files.
Face Tester
Function that allows you to verify
that the configuration of the G-Code
file and 3D printer are compatible.
Aspects such as thickness of the
layer, print speed and printing
nozzle are checked for disparity
between the printer settings and
the G-Code files. If so, it will not
allow you to start printing.
JCR Edit
Software created for the manual
repair of errors in STL files that
cannot be automatically repaired.
Also offers you the most common
functions, such as cut, assemblies
design, mark, number and scale.
Extended 2 Year warranty
Our intelligent software systems,
automatic warning system for
preventive maintenance, and
strict factory quality controls
allow us to offer users a 2 year
warranty for all our models.
100% Printer quality controls
Every Smart JCR that leaves the factory is subject to strict
quality control that goes through different tests to ensure the perfect state of all its functionalities.
Automatic predictive maintenance system
Service reminders prompt you to carry out the recommended maintenance of the printer depending on the hours of printing and elapsed time. This system allows you to guarantee the good maintenance of the printer.

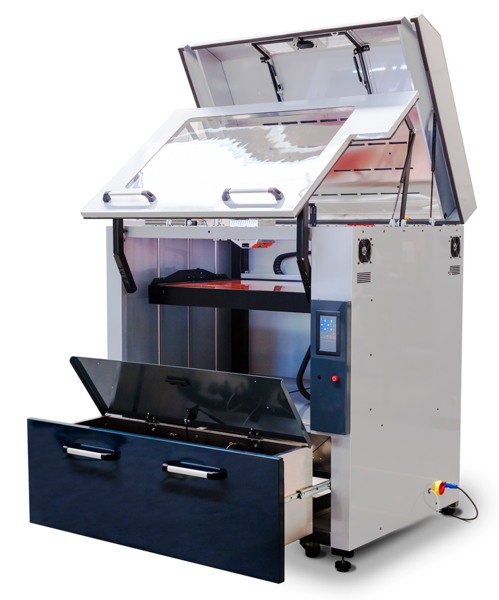

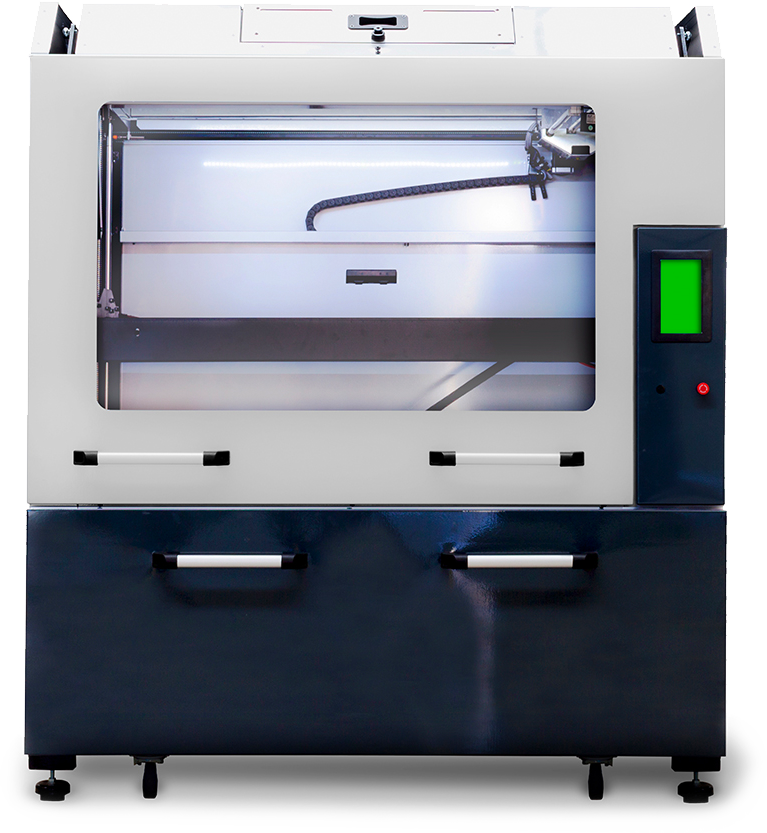

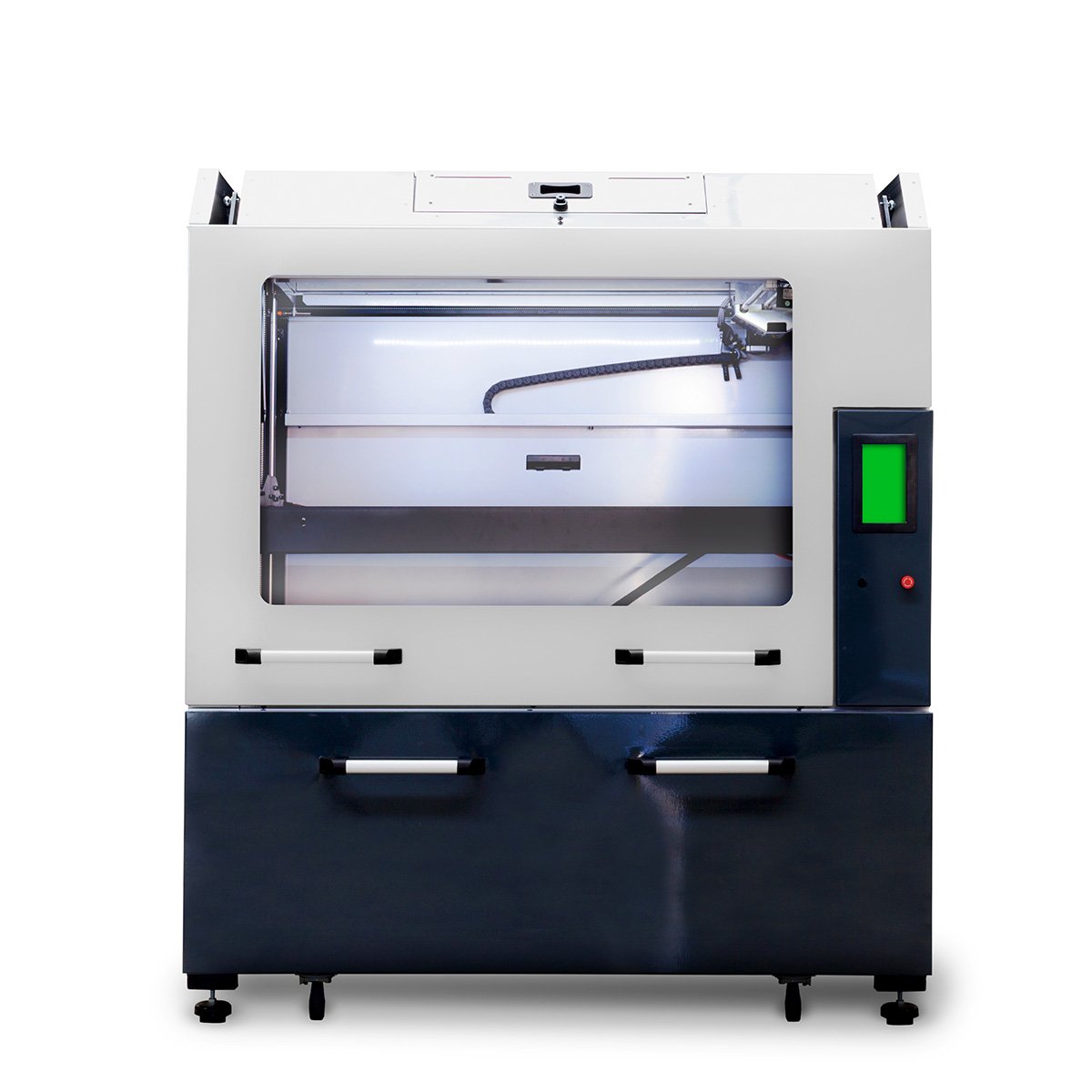

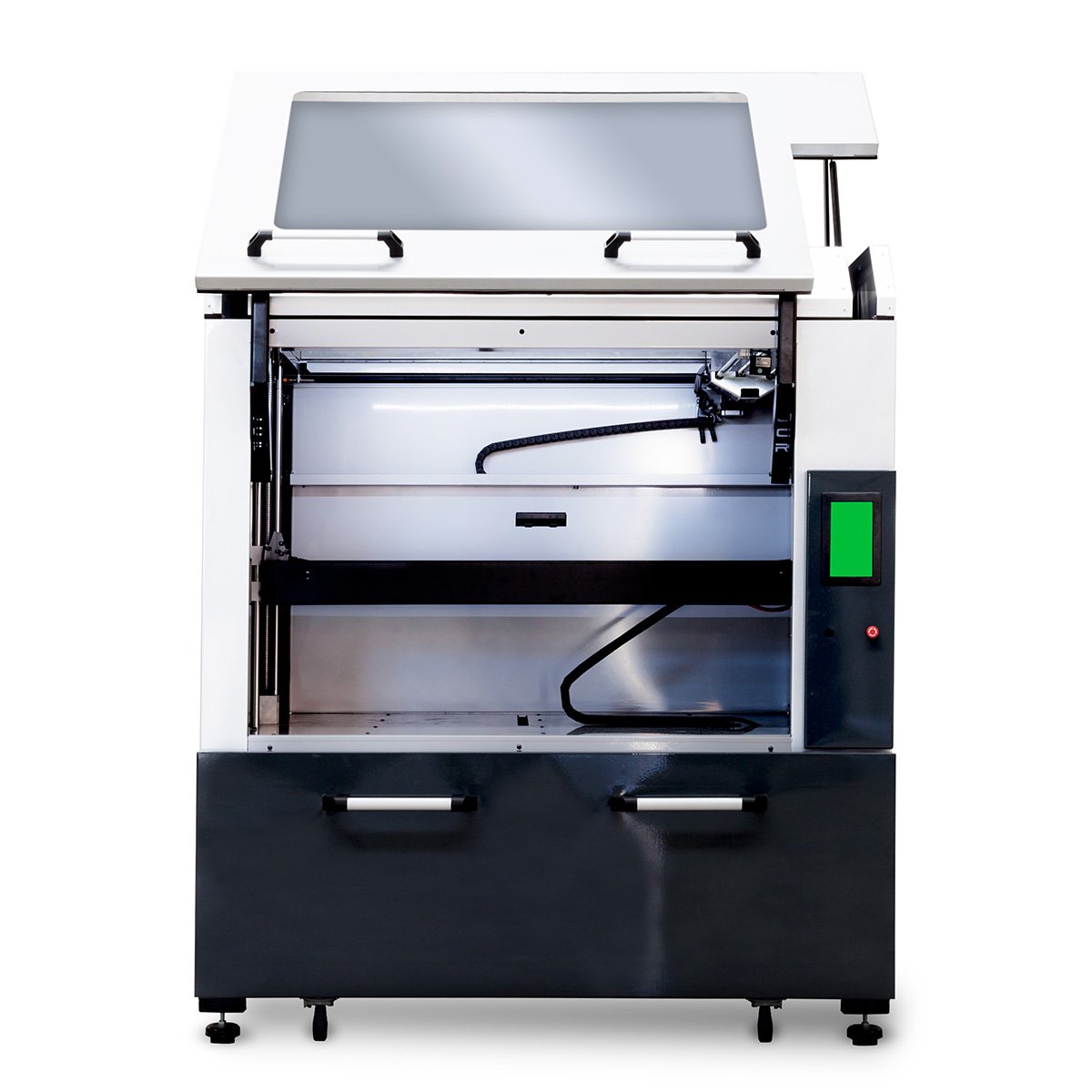

JCR 1000 is the industrial 3D printer developed by Grupo Sicnova to meet the demands of the industry in terms of printing volume, precision, reliability and variety of materials. With a double extruder of 1.75 mm and a closed and heated environment, it ensures reliable printing for industries and professionals of all kinds.
“3D printing and specific materials design are today’s answer to the future problems and needs. In this case JCR1000 was the perfect solution. ”
— Antonio Peláez
Director of Smart Materials 3D
- Industrial 3D printer from Grupo Sicnova with FFF technology (Fused Filament Fabrication)
- Maximum print volume: 1000 x 600 x 600 mm

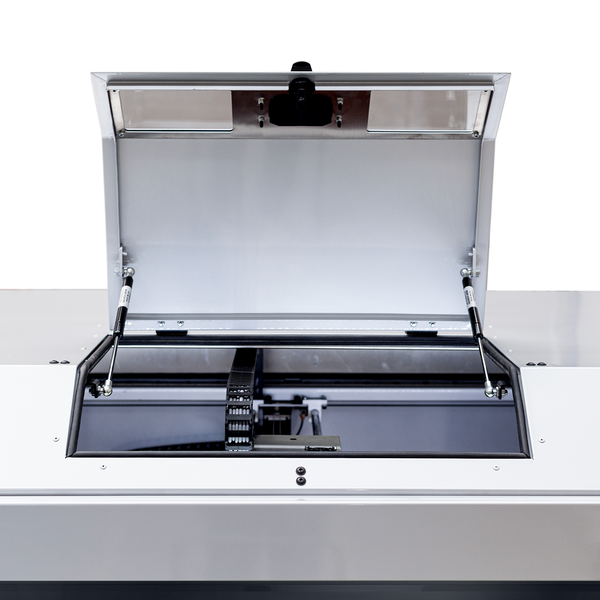

- Enclosed and heated environment with controlled temperature
- Possibility of printing with two materials in the same piece
- Manufactures pieces in a large variety of thermoplastic materials with different properties
- Excellent value for money for the industry
- Great versatility of thermoplastic materials
- Self-leveling system

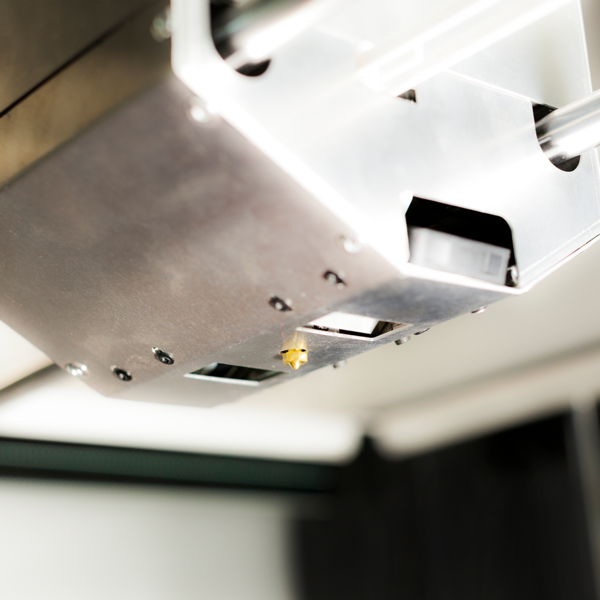

- 1.75 mm extruder
- Suitable for industries and professionals who need a large volume of construction
| Construction volume (L x W x H) | 1000 x 600 x 600 mm |
| Automatic leveling of the bed | Yes |
| Nozzle diameter range | 0.35 – 0.4 – 0.5 – 0.6 – 0.8 mm |
| Diameter of the filament | 1.75 mm |
| Maximum extruder temperature | 245 ° C |
| Fans in the print head | Yes |
| Independent or coupled movement | Coupled |
| Simultaneous printing with multiple material | Printing with double material with a single head |
| Hot bed, maximum temperature | 100 ° C |
| Chamber of the hot chamber, maximum temperature | 65 ° C |

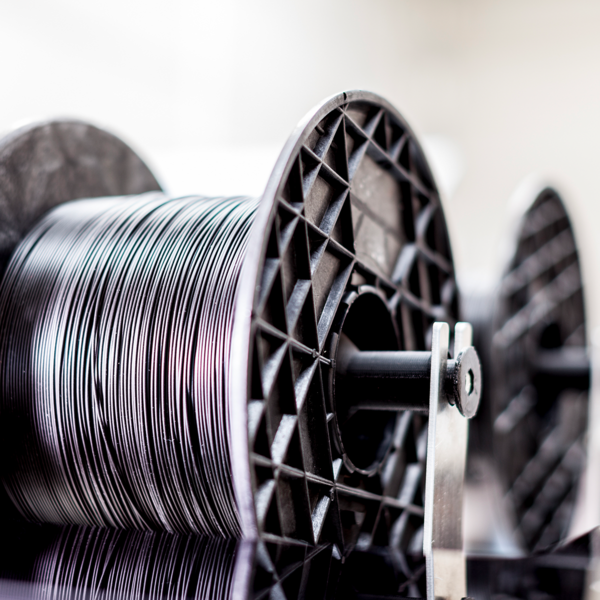

| Coil capacity | 8 Kg |
| Number of coils | 2 |
| Dimensions of the printer (L x W x H) | 1500 mm x 1210 mm x 1730 mm |
| Energy requirements | 1F / 220 V, 4 kW |
| Certifications | CE certification |
JCR 600
JCR 600 Pro

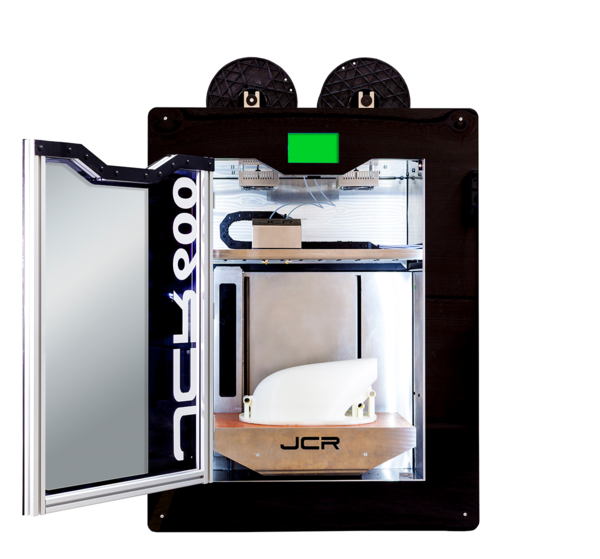

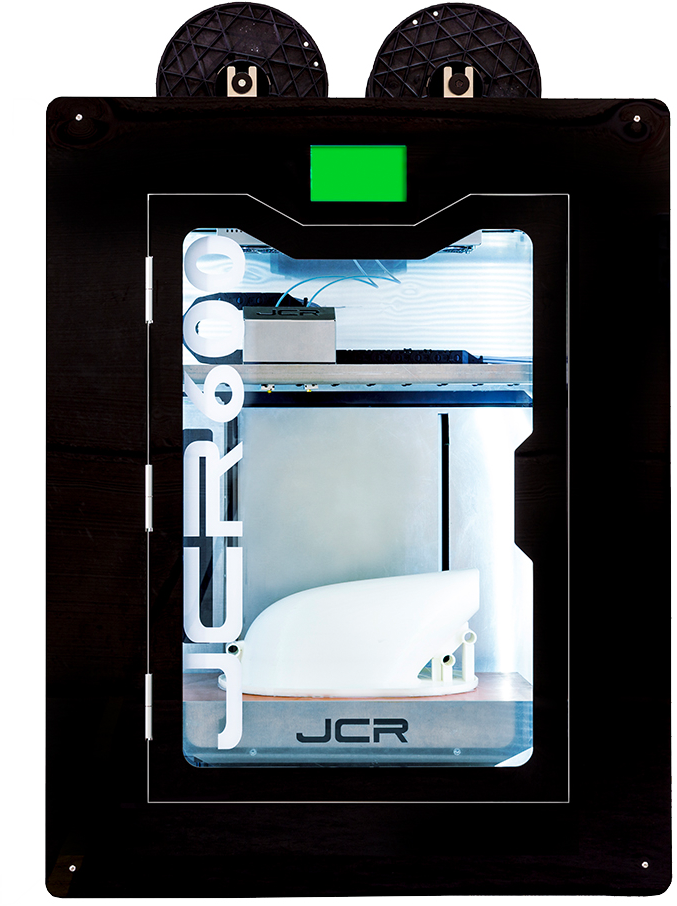

JCR 600 is a large format industrial FDM 3D printer, to manufacture pieces up to 580 x 400 x 450 mm with two materials simultaneously, thanks to its double extruder. Ideal for those companies that require a higher volume of work than normally provided by desktop 3D printers.
- Print volume of 580 x 400 x 500 mm
- Double extruder for manufacturing parts with two materials
- Variety of technical materials: PLA, JCR PRINT, PETG, ABS, CASTING, PVA, JCR SUPPORT
- Manufacture with soluble support material
- Nozzle diameters: 0.4, 0.5, 0.6 and 0.8 mm
- Automatic levelling with a closed and heated environment and controlled temperature
- Remote monitoring with webcam
|
Construction volume (L x W x H) |
580 x 400 x 500 mm |
|
Nozzle diameters (mm) |
0.4, 0.5, 0.6 and 0.8 mm |
|
Maximum temperature of the extruder |
245 ºC |
|
Maximum temperature of the hotbed |
100 ºC |
|
Maximum ambient temperature |
65 ºC |
|
Ventilated printhead |
Yes |
|
Automatic bed levelling system |
Yes |
|
Manufacture with double material |
Yes |
|
Capacity of filament coils |
8 kg / 5.6 kg / 1 kg |
|
Number of coils |
2 |
|
Connections |
Ethernet, Wifi |
|
Monitoring |
Webcam |
|
Dimensions of the printer (L x W x H) |
1000x1000x1300 mm |
|
Consumption |
1 F / 220V, 3 KW |
|
Certifications |
EC |
|
Materials |
PLA, JCR Print, PETG, ABS, ABS Fireproof, Casting, PVA, JCR Support |
|
Support for third-party materials |
Yes |
